Wooden Door Smart Lock Buying Guide for Distributors and Project Buyers

Introduction

Buying a wooden door smart lock for B2B use should not start with appearance alone. The door thickness, existing mortise or latch, cutout size, opening direction, access methods and platform expectation determine which product direction can be reviewed for quotation.

For SINON's current confirmed product range, A15 Indoor Smart Lock is the main wooden-door smart lock direction. D01 Smart Deadbolt may fit indoor wooden-door single-latch needs. R10 Face & Palm-vein Smart Lock may be reviewed when a wooden or iron entrance door requires biometric access.

Short answer: Start with the wooden door specification: material, thickness, opening direction, existing mortise or latch, cutout size and application environment. Then confirm access methods, platform version, power details and OEM scope before requesting a quotation.

Start with the Wooden Door Specification

Wooden doors can vary by country, door factory and previous lock preparation. Even if a door looks simple from the front, the existing mortise, latch, bore holes or decorative trim may affect installation.

Before selecting a model, prepare:

• Door thickness in millimetres.
• Opening direction and hinge side.
• Existing mortise or latch size.
• Existing cutout size and photos.
• Front, inside, edge and frame photos.
• Whether modification is acceptable.

Door thickness is important, but it is not the only fit condition. For a deeper measurement process, read the door compatibility and mortise guide.

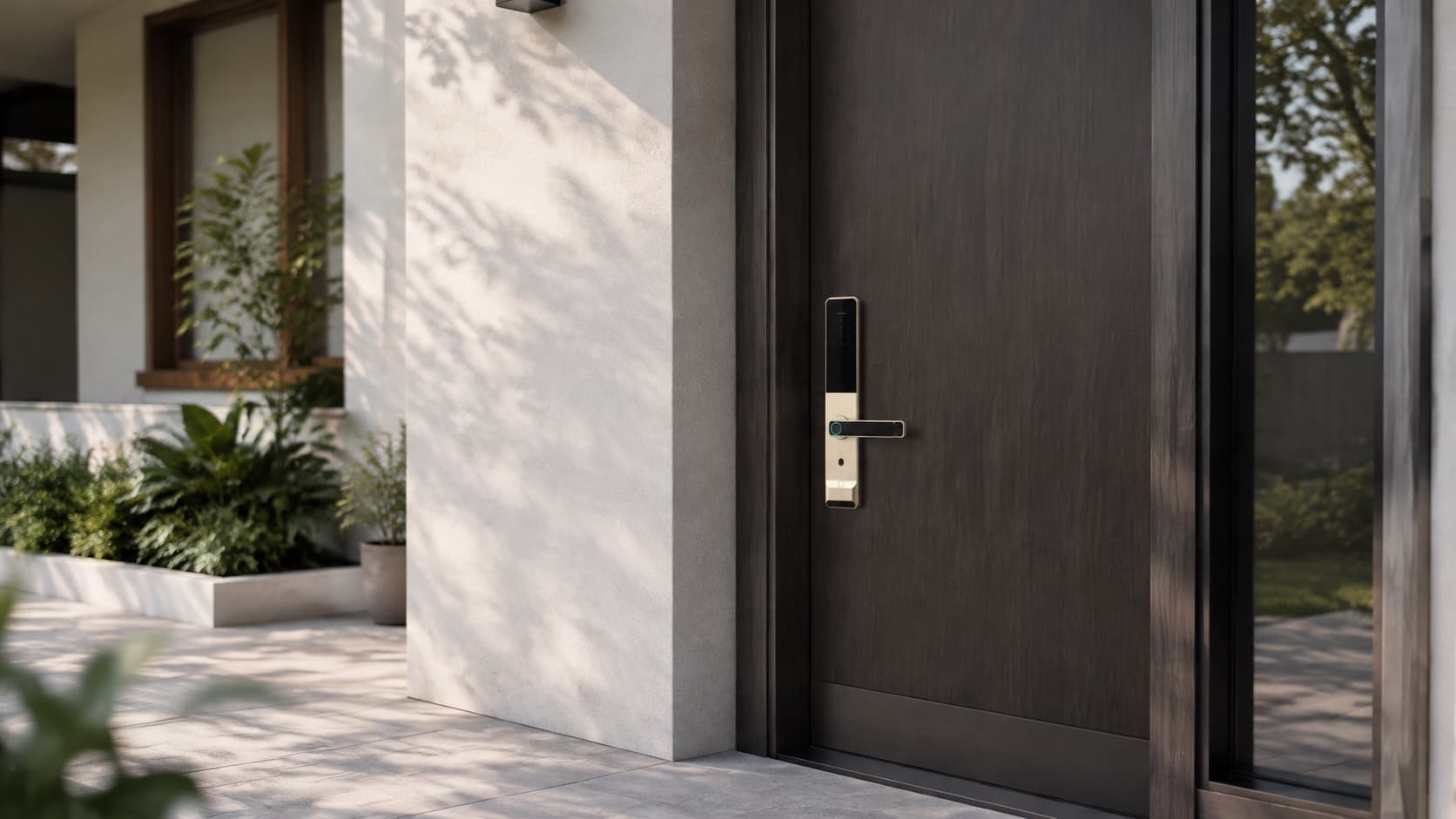

A15 for Wooden Doors

A15 is an indoor smart lock for wooden doors. The recommended door thickness is 40-90 mm. It should be reviewed against door thickness, opening direction, mortise size and existing cutout before quotation.

Confirmed A15 facts:

• Door type: wooden doors.
• Recommended door thickness: 40-90 mm.
• Access methods: fingerprint, PIN, card, Bluetooth and mechanical key.
• Connected versions: Standard, Tuya Wi-Fi, TTLock Bluetooth and Zigbee.
• Mortise options: 5050, 3585, 4585, 5085, 5572 and 6085.
• Material: aluminum alloy lock body with tempered-glass panel.
• Panel size: 265 mm x 63 mm.
• Power: 4 AAA batteries.
• Emergency access: mechanical key and emergency power port.

Do not describe A15 as a direct replacement for all wooden-door locks. The final configuration should be checked against the buyer's existing lock body, cutout and door condition.

[[IMAGE:a15-review]]

D01 for Indoor Wooden-Door Deadbolt Needs

D01 is a smart deadbolt direction for indoor wooden doors, iron doors and security doors. For wooden-door buyers, it is relevant when the project needs a Single Latch smart deadbolt rather than a full mortise-style smart lock.

Confirmed D01 facts:

• Door type: indoor wooden doors, iron doors and security doors.
• Recommended door thickness: 35-55 mm.
• Latch: Single Latch.
• Access methods: fingerprint, PIN, card, Bluetooth, mechanical key and app.
• Platform: confirmed Tuya Wi-Fi version on the Tuya platform.
• Power: 2500mAh lithium battery.
• Emergency power: USB emergency charging port.
• Certification status: no certification is currently confirmed.
• D01 is not suitable for outdoor use because it is not waterproof.

If the buyer needs TTLock, Matter, HomeKit, outdoor use or a confirmed certificate, do not write those claims into the quotation unless new evidence is provided and confirmed.

R10 When Biometric Entrance Access Is Needed

R10 is not only a wooden-door product. It is a biometric smart lock for wooden or iron entrance doors when the buyer needs 3D face recognition and palm-vein access.

Confirmed R10 facts:

• Door type: wooden or iron entrance doors.
• Recommended door thickness: 40-120 mm.
• Mortise options: 6068 and 6085.
• Biometrics: 3D face recognition, palm vein and fingerprint.
• Additional access: PIN, card, Bluetooth and mechanical key.
• Camera: wide-angle camera with peephole function.
• Platform: Tuya Wi-Fi or Tuya Zigbee on the Tuya platform only.
• Power: 7.4V 4200mAh rechargeable lithium battery.
• Emergency access: mechanical key and Type-C emergency power.

Do not claim recognition accuracy or special-environment performance unless test data is provided. Also do not promise support for non-Tuya apps.

Mortise and Latch Review

The mechanical review is where many wooden-door orders become clear or unclear. A buyer should not select the lock only from the outside panel.

For A15, the current source table lists 5050, 3585, 4585, 5085, 5572 and 6085 lock body options. For R10, the current options are 6068 and 6085. D01 uses Single Latch.

Send photos and measurements before finalizing:

• Door edge and existing lock body.
• Faceplate size.
• Backset and center distance where applicable.
• Existing cutout and screw-hole position.
• Strike plate and frame condition.

Access Methods and Platform Choices

A wooden-door smart lock buyer should separate access methods from platform requirements. Fingerprint, PIN, card, Bluetooth, app control and biometric features are not interchangeable across models.

If your business needs a specific app or smart-home ecosystem, put that requirement in the RFQ before sample selection.

Battery and Emergency Access

Power details should be written by model.

A15 uses 4 AAA batteries. Battery life depends on battery quality, and the emergency power port connector type requires confirmation before it is written into a formal quotation.

D01 uses a 2500mAh lithium battery and has an emergency USB charging port.

R10 uses a 7.4V 4200mAh rechargeable lithium battery. Source data records up to about 182 days at 10 unlocks per day, but actual life varies by use. R10 supports mechanical key and Type-C emergency power; the Type-C interface should not be described as the daily charging interface unless confirmed.

What Distributors Should Confirm Before Ordering

Before placing a sample or larger order, distributors and project buyers should confirm:

• Door type and thickness range.
• Mortise or latch configuration.
• Access methods required by local buyers.
• Platform and connected version.
• OEM logo, finish and packaging needs.
• Whether the application is indoor, entrance or outdoor.
• Which certificates or documents are actually required.

For a complete request format, use the smart lock RFQ checklist or submit the details through the RFQ form.

Comparison Table: A15, R10, D01

FAQ

What door type and thickness does A15 fit?

A15 is designed for wooden doors. The recommended door thickness is 40-90 mm. Before ordering, confirm the door thickness, opening direction, mortise specification and existing cutout size; door thickness alone does not confirm direct replacement.

How do I know which SINON smart lock fits my door?

Start with the door, not only the lock appearance. Confirm the door material, door thickness, opening direction, existing mortise or latch, cutout size and application environment. SINON can then review whether A15, R10, D01 or another model direction is more suitable for quotation.

Can D01 be used outdoors on a wooden door?

No. D01 is not suitable for outdoor use because it is not waterproof.

Conclusion

For wooden-door smart lock sourcing, choose the product direction from the door specification first. A15, D01 and R10 each have different door ranges, access methods, platform limits and power details.

Review the SINON product range, compare custom application requirements, or send door photos and measurements through the contact page or RFQ form.
